Multi-armed bandits
Introduction
The objective of this lab session is to test the performance of some usual bandit algorithms.
import numpy as np
import matplotlib.pyplot as plt
Algorithms
There are $$k$$ possible actions, $$a \in { 0, 1,…,k - 1}$$.
We consider the following algorithms:
- $$\varepsilon$$-greedy
- adaptive greedy
- UCB
- Thompson sampling
Each algorithm returns an action based on the following inputs:
| Variable | Type | Description |
|---|---|---|
nb_tries |
1D array of int of size k |
number of tries of each action so far |
cum_rewards |
1D array of float of size k |
cumulative reward of each action so far |
param |
mixed | parameter of the algorithm |
Note: Use the simple_test function to test the behaviour of the algorithms for binary rewards.
def eps_greedy(nb_tries, cum_rewards, param):
if param == None:
eps = 0.1
else:
eps = float(param)
k = np.shape(nb_tries)[0]
if np.sum(nb_tries) == 0 or np.random.random() < eps:
return np.random.randint(k)
else:
index = np.where(nb_tries > 0)[0]
return index[np.argmax(cum_rewards[index] / nb_tries[index])]
def adaptive_greedy(nb_tries, cum_rewards, param):
if param == None:
c = 1.
else:
c = float(param)
k = np.shape(nb_tries)[0]
t = np.sum(nb_tries)
if np.sum(nb_tries) == 0 or np.random.random() < c / (c + t):
return np.random.randint(k)
else:
index = np.where(nb_tries > 0)[0]
return index[np.argmax(cum_rewards[index] / nb_tries[index])]
def ucb(nb_tries, cum_rewards, param):
if param == None:
c = 1.
else:
c = float(param)
if np.sum(nb_tries == 0) > 0:
index = np.where(nb_tries == 0)[0]
return np.random.choice(index)
else:
t = np.sum(nb_tries)
upper_bounds = cum_rewards / nb_tries + c * np.sqrt(np.log(t) / nb_tries)
return np.argmax(upper_bounds)
def thompson(nb_tries, cum_rewards, param):
k = np.shape(nb_tries)[0]
if param == "beta":
# Beta prior
try:
samples = np.random.beta(cum_rewards + 1, nb_tries - cum_rewards + 1)
except:
samples = np.random.random(k)
else:
# Normal prior
samples = np.random.normal(cum_rewards / (nb_tries + 1), 1. / (nb_tries + 1))
return np.argmax(samples)
def get_action(algo, nb_tries, cum_rewards, param = None):
if algo == "eps_greedy":
return eps_greedy(nb_tries, cum_rewards, param)
elif algo == "adaptive_greedy":
return adaptive_greedy(nb_tries, cum_rewards, param)
elif algo == "ucb":
return ucb(nb_tries, cum_rewards, param)
elif algo == "thompson":
return thompson(nb_tries, cum_rewards, param)
def get_bernoulli_reward(a, model_param):
return float(np.random.random() < model_param[a])
def simple_test(algo, model_param = [0.1, 0.6, 0.3], time_horizon = 20, param = None):
k = len(model_param)
nb_tries = np.zeros(k, int)
cum_rewards = np.zeros(k, float)
print ("action -> reward")
for t in range(time_horizon):
a = get_action(algo, nb_tries, cum_rewards, param)
r = get_bernoulli_reward(a, model_param)
print(str(a) + " -> " + str(int(r)))
nb_tries[a] += 1
cum_rewards[a] += r
index = np.where(nb_tries > 0)[0]
best_action = index[np.argmax(cum_rewards[index] / nb_tries[index])]
print("Best action (estimation) = ", best_action)
algos = ["eps_greedy", "adaptive_greedy", "ucb", "thompson"]
algo = algos[3]
simple_test(algo)
action -> reward
2 -> 0
2 -> 0
0 -> 0
2 -> 1
1 -> 1
1 -> 1
1 -> 1
1 -> 1
2 -> 1
1 -> 1
1 -> 1
1 -> 1
1 -> 0
1 -> 1
1 -> 1
1 -> 1
1 -> 1
1 -> 0
1 -> 0
1 -> 1
Best action (estimation) = 1
Regret and precision
We now compare the performance of the algorithms in terms of regret and precision.
We consider two models: Bernoulli rewards and normal rewards.
def get_reward(a, model, model_param):
if model == "bernoulli":
return float(np.random.random() < model_param[a])
elif model == "normal":
return np.random.normal(*model_param[a])
def simulate(model, model_param, time_horizon, algo, param = None):
k = len(model_param)
nb_tries = np.zeros(k, int)
cum_rewards = np.zeros(k, float)
action_seq = []
reward_seq = []
for t in range(time_horizon):
a = get_action(algo, nb_tries, cum_rewards, param)
r = get_reward(a, model, model_param)
nb_tries[a] += 1
cum_rewards[a] += r
action_seq.append(a)
reward_seq.append(r)
return action_seq, reward_seq
# Bernoulli rewards
model = "bernoulli"
model_param = [0.1, 0.6, 0.3]
time_horizon = 20
algo = algos[1]
action_seq, reward_seq = simulate(model, model_param, time_horizon, algo)
print(action_seq)
print(reward_seq)
[0, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1]
[0.0, 1.0, 1.0, 1.0, 0.0, 1.0, 0.0, 1.0, 1.0, 0.0, 1.0, 1.0, 0.0, 0.0, 1.0, 1.0, 1.0, 0.0, 0.0, 0.0]
# Normal rewards
model = "normal"
model_param = [(2,1), (2.5,1)]
action_seq, reward_seq = simulate(model, model_param, time_horizon, algo)
print(action_seq)
print(reward_seq)
[0, 1, 1, 0, 0, 0, 0, 0, 0, 1, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0]
[1.179115746836822, -1.7287995218220553, 2.9824932372612576, 4.70929759324456, 2.680146152730028, 1.4290308142715937, 1.8901714668658633, 2.400874122036182, 2.343488568046762, 2.945493694373399, 1.5180819830660592, 0.6047846869116558, 2.3886517354112042, 1.121706354860382, 2.2243707175008653, 2.0388350243462257, 2.1270553228483826, 1.3483034375420133, 0.8298318872576476, 1.1361810591475932]
Note: The get_best_action function returns the list of best actions and the corresponding expected reward.
def get_best_action(model, model_param):
if model == "bernoulli":
best_reward = np.max(model_param)
best_actions = list(np.where(model_param == best_reward)[0])
elif model == "normal":
means = [model_param[a][0] for a in range(len(model_param))]
best_reward = np.max(model_param)
best_actions = list(np.where(means == best_reward)[0])
return best_actions, best_reward
def get_metrics(action_seq, reward_seq, best_actions, best_reward):
time_horizon = len(action_seq)
regret = best_reward * np.arange(time_horizon) - np.cumsum(reward_seq)
precision = np.cumsum([int(a in best_actions) for a in action_seq]) / (np.arange(time_horizon) + 1)
return regret, precision
def show_metrics(metrics):
fig, (ax1, ax2) = plt.subplots(1,2,figsize=(12, 4))
ax1.set_xlabel('Time')
ax1.set_ylabel('Regret')
ax1.plot(range(time_horizon),metrics[0], color = 'b')
ax2.set_xlabel('Time')
ax2.set_ylabel('Precision')
ax2.set_ylim(-0.02,1.02)
ax2.plot(range(time_horizon),metrics[1], color = 'b')
plt.show()

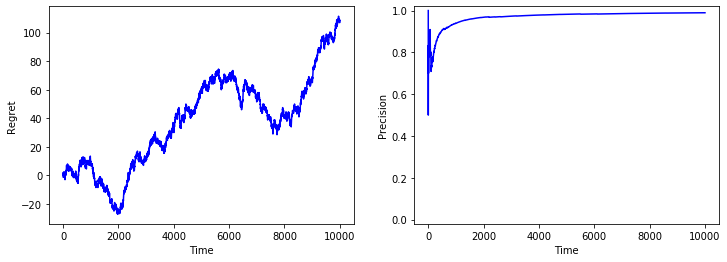

time_horizon = 10000
model = "bernoulli"
model_param = [0.2, 0.5]
algo = algos[2]
results = simulate(model, model_param, time_horizon, algo)
metrics = get_metrics(*results, *get_best_action(model, model_param))
show_metrics(metrics)

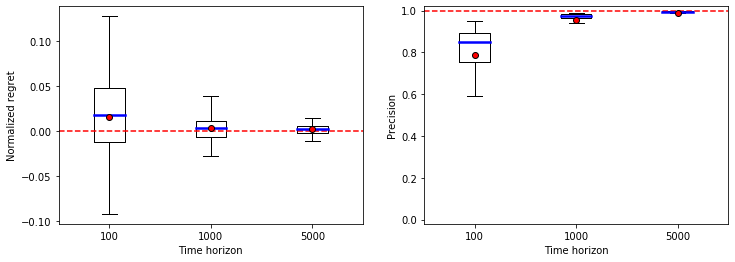

Statistics
Finally, we provide some statistics on the performance of each algorithm for different time horizons.
def get_stats(nb_samples, time_periods, model, model_param, algo, param = None):
time_horizon = max(time_periods)
norm_regret_samples = [[] for t in time_periods]
precision_samples = [[] for t in time_periods]
for s in range(nb_samples):
results = simulate(model, model_param, time_horizon, algo, param)
regret, precision = get_metrics(*results, *get_best_action(model, model_param))
for i,t in enumerate(time_periods):
norm_regret_samples[i].append(regret[t - 1] / t)
precision_samples[i].append(precision[t - 1])
return norm_regret_samples, precision_samples
def show_stats(time_periods, stats):
meanprops = dict(marker='o', markeredgecolor='black', markerfacecolor='r')
medianprops = dict(linestyle='-', linewidth=2.5, color = 'b')
fig, (ax1, ax2) = plt.subplots(1,2,figsize=(12, 4))
ax1.boxplot(stats[0], positions = range(len(time_periods)), showfliers = False, showmeans = True, meanprops = meanprops, medianprops = medianprops)
ax1.axhline(linestyle = '--', color = 'r')
ax1.set_xticklabels(time_periods)
ax1.set_xlabel('Time horizon')
ax1.set_ylabel('Normalized regret')
ax2.boxplot(stats[1], positions = range(len(time_periods)), showfliers = False, showmeans = True, meanprops = meanprops, medianprops = medianprops)
ax2.set_ylim(-0.02,1.02)
ax2.axhline(y = 1, linestyle = '--', color = 'r')
ax2.set_xticklabels(time_periods)
ax2.set_xlabel('Time horizon')
ax2.set_ylabel('Precision')
plt.show()
time_periods = [100,1000,5000]
nb_samples = 100
model = "bernoulli"
model_param = [0.1, 0.2]
algo = algos[3]
stats = get_stats(nb_samples, time_periods, model, model_param, algo)
show_stats(time_periods, stats)
